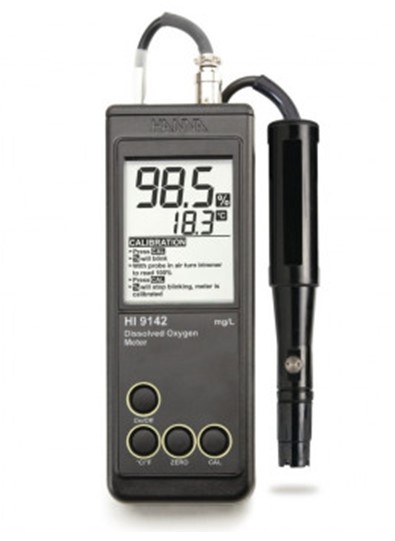

HI 9142 Portable Moisture Proof Oxygen Meter

HI9142 Oxygen meter portable moisture-proof

The ever-increasing demand for instant on-the-spot analysis results has created a need for innovative and rugged, portable, moisture-proof instruments. The HI-9142 is an easy-to-use dissolved oxygen (DO) meter with a polarographic sensor.



During fieldwork, instruments may be exposed to inclement weather. Cold, rain, dust, and moisture can cause condensation on housing parts. The moisture-resistant housing of the HI-9142 successfully withstands the many challenges of working in the field.



The zero point calibration is performed using a zero dissolved oxygen HI-7040 solution, while the 100% point calibration is performed in air.



The polarographic sensor (HI 76407/4) operates with an accuracy of 0.3 parts per million and comes with a 4 m cable, allowing for measurements even in hard-to-reach locations.







Product Features:







Dissolved oxygen range of 0.00 to 19.9 mg/L

Dissolved oxygen resolution 0.1 mg/L

Dissolved oxygen accuracy ± 1.5% of full scale

One or two-point manual calibration (zero and slope)

Temperature compensation of dissolved oxygen automatic from 0 to 30 °C

HI 76407/4 Polarographic probe electrode/probe with 4 m (13 inches) cable (included)

Environment 0 to 50 °C (32 to 122 °F); max. 100% relative humidity

Power supply 1.5V AA (4) / approximately 500 hours continuous operation

Size 196 x 80 x 60mm

Weight 500 g

Ordering Information The HI9142 comes complete with the HI76407/4 dissolved oxygen sensor with 4 m cable, 2 spare membranes, HI7041S electrolyte solution (30 ml), calibration screwdriver, batteries, instruction manual and hard carrying case
