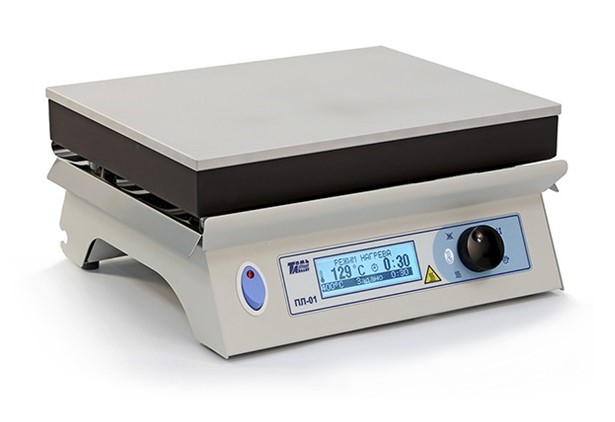

Laboratory heating plate PL-01

Laboratory heating plate for heat treatment while controlling the temperature and heating time. The heating platform is made of duralumin. The size of heating surface: 284x220 mm. Heating temperature: 40-400 oC. Can be equipped with a sand bath tray.



Modes of operation and control of PL-01 heating plate



Features of PL-01 heating plate



Body of plate is made of corrosion-resistant steel

Informative graphic display

Hot surface indicator which is also operative when the mains switch is off.

The construction of the heater and PID-controller provides a highly precise and uniform temperature level on the heating surface of the stove hob.

The construction of the stove protects the electronic components and controls from liquid spills.

Compliance with safety requirements of technical regulations of the Customs Union ТР ТС 004/2011 and ТР ТС 020/2011.

Technical specifications:

Name



Value



Heating surface temperature range, °C



from 40 to 400



Accuracy of temperature setting, °С



±1



Temperature unevenness, °С



5



Working surface tile coating



Aluminum oxide, heat-resistant enamel



Heating surface material



Duralumin



Resistance of insulation of circuits (under normal conditions), MOhm



10



Power consumption, kW, max



1,5



Overall dimensions of board, mm



290x260x122



Dimensions of heating surface, mm



284х220



Weight, kg



4,7



Stove is powered from 1-phase alternating current network with voltage (230±23) V and frequency (50±1) Hz.
