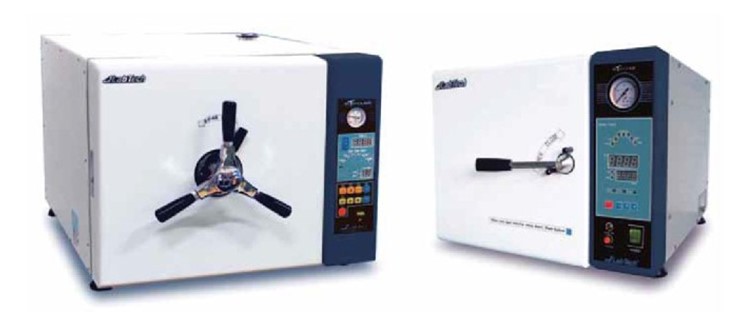

LAC LABTECH (South Korea) benchtop autoclaves
Description:
- Sterilization temperature +110°C and +135°C Water filling - heating - sterilization - venting - natural drying - end of cycle
- Microprocessor controlled programmable PID controller with auto-adjustment and LCD display
- 3 pre-set programs: for packed objects, for unpacked objects, sterilization of liquids. One user programmable
- Fully automatic operating system with display of workflow parameters on LCD makes it easy to control the cycle from start to finish
- Pressure relief valve prevents overpressure in the chamber, thermostat prevents overheating and a normally open solenoid valve keeps the chamber at ambient pressure
- Self-diagnosis and safety. In the event of a malfunction, operation is automatically interrupted for safety reasons, the sterilizer contents are vented and an error code is shown on the display for easy service
- Fast sterilization at 134°C for 5 minutes
- Efficient displacement volume ensures maximum sterilization capacity
Specifications* of models LAC-3012SE, LAC-3012SV
Model
LAC-3012SE
LAC-3012SV
Class
N
B
Air Removal.
Gravity
Vacuum pump
Capacity, l
415x345x560
Internal dimension, mm
200х200х300
Capacity, l
12
Controller
Microprocessor PID controller
*Specification is subject to change without notice to improve quality.
Specifications* of models LAC-2010E, LAC-2020E, LAC-2030E
Model
LAC-2010E
LAC-2020E
LAC-2030E
Controller
Microprocessor PID controller with manual settings
Model
LA C- 3010G
LAC-3020G
LAC-3030G
Controller
Microprocessor 3 pre-set programs, 1 user program
External dimensions, (WxHxV) mm
480х720х400
530x780x420
650х820х500
Internal dimension, (DIAM x D), mm
200х350
250х450
350х455
Volume, l
11
22
44
Water tank volume, l
5
5
7
Heater capacity, kW
1,5
2
3
Outer surface material
Epoxy coated steel
Chamber material
Stainless steel (STS 316 L steel optional)
Sterilization temperature
101 to +135°C
Pressure range
0.39 to 2.25 bar
Vacuum/pressure range
-0.1 to 0.4 MPa (760 mm Hg - 4 kgf/cm2)
Display
LED (temperature, timer, cycle programming)
LED (water, heating, sterilization, drying, end of cycle.)
Timer
4-90 min. in sterilization mode and 1-90 min. in drying mode
Door
Single action closure / Inter Lock system
Safety
- Pressure relief valve
- Protection against overheating
- Door opening and power cut off sensor
- Low water level protection
- Current and leakage protection
Trays
175х330
215х405
305х435
Wire cable trays (standard) / Perforated trays (optional)
Power supply
110 V, or 220 V, 50/60 Hz.
*Specifications subject to change without notice to improve quality.
- Cycles for sterilization
- Starting
- Filling with water
- heating
- sterilisation
- venting
- natural drying
- end of cycle
